Form fields

Form fields are required when designing new report types but can also be used for any non-measurement related data fields. These can be added to: locations, lines, nodes (not used in the UI), location-ports, groups. Form fields can consist of any of the following elements:

• Text (1 line)
• Text (multiple lines)
• Select one from a list (select)
• Select one from a list (radio)
• Select one or more from a list (switch)
• Select one or more from a list (checkbox)
• File
• Files

• The key is the unique name given to this form field.
• The name is the name that is shown in the application

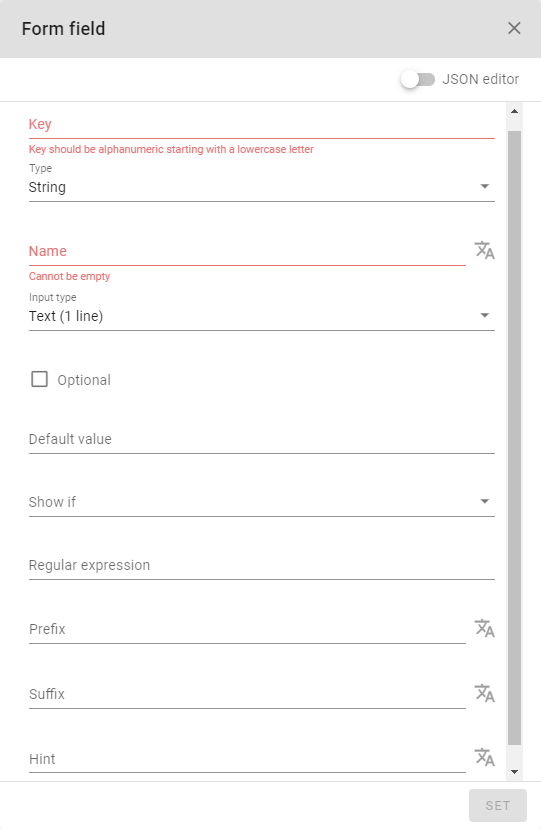

Depending on the choice of form field type, additional options are available:

• A form field value can be set to optional
• Form field can be shown only when a certain condition is satisfied
• Regular expression can enforce a structure of string input
• Prefix is displayed on the left of the input box
• Suffix is displayed on the right of the input box
• Hint is the text displayed below the input box where you can enter text

How-to videos

The following video demonstrates how form fields are used to create new properties in the monitoring environment.

Watch the video on Youtube
